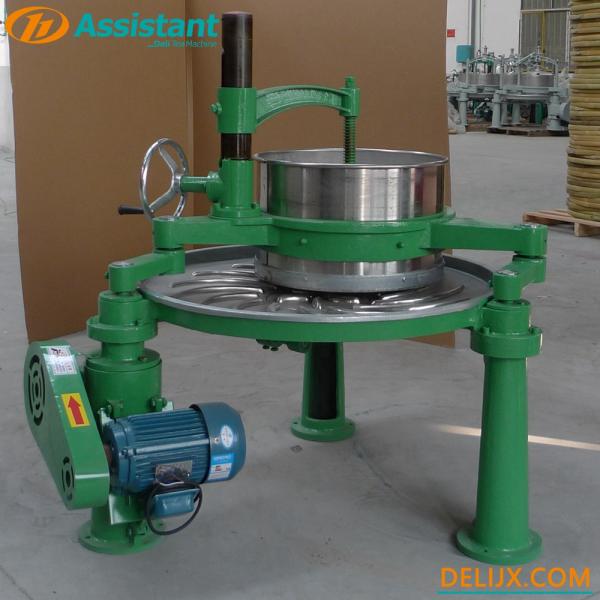

DL-6CRT-50 Tea Processing Machine Tea Roller Device Tea Rolling Machine 10201101300

Name: DL6CRT50 Tea Processing Machine Tea Roller Device Tea Rolling Machine 10201101300
Brand: DELI ASSISTANT
Price: 1 USD

Quality DL-6CRT-50 Tea Processing Machine Tea Roller Device Tea Rolling Machine 1020*110*1300 for sale

Condition : New

Applicable Industries : Farms

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : Engine, Bearing, Motor, Gear

Brand Name : DELI ASSISTANT

Place of Origin : China

Voltage : 380v

Power : 2.2kw

Dimension(L*W*H) : 1020*110*1300

Weight : 400 KG

Warranty : 1 Year

Application fields : tea leaves

Raw material : tea leaves

Output product name : tea leaves

capacity per batch : 20kg

barrel diameter : 500mm

barrel height : 280mm

tea disc diameter : 1000mm

Maximum capacity per time : 40kg

Price : $1,999.00/sets 1-4 sets

Contact Now

DL-6CRT-50 Tea Processing Machine Tea Roller Device Tea Rolling Machine 1020*110*1300

Tea Garden Management Equipments

Tea Withering Machine

Tea leaf fixation machine

Tea Rolling Machine

Tea Fermentation Machine

Tea Dryer Machine

Model	DL-6CRT-50	Barrel diameter	500 mm
Dimension	102011001300 mm	Barrel height	280 mm
Voltage	380V / 50Hz	Barrel speed	60 RPM
Power	2.2kw	Productivity	20 kg/h
Tea disc diameter	1000 mm	Maximum capacity per time	20 kg/time

Tea rolling machine description:

For non-fermented tea such as green tea: For green tea, the main function of tea rolling machine is shaping.
Through the action of external force, tea rolling machine makes the leaves smash and light, the tea roll turns into a strip shape,and the volume is reduced, which is good for brewing.

For fermented tea such as black tea: Through the external force of the tea rolling machine, the tea cells are damaged, the tea juice overflows, accelerates the enzymatic oxidation of polyphenolic compounds, facilitates fermentation, lays a foundation for the formation of the unique taste of the fermented tea.

Model	Barrel Diameter	Barrel Height	Capacity
DL-6CRT-25	25 cm	18 cm	3 kg/batch
DL-6CRT-30	30 cm	21 cm	5 kg/batch
DL-6CRT-35	35 cm	26 cm	8 kg/batch
DL-6CRT-40	40 cm	25 cm	11 kg/batch
DL-6CRT-45	45 cm	28 cm	15 kg/batch
DL-6CRT-50	50 cm	28 cm	20 kg/batch
DL-6CRT-55	55 cm	40 cm	35 kg/batch
DL-6CRT-65	65 cm	48 cm	60 kg/batch
DL-6CRT-75	75 cm	58 cm	100 kg/batch
DL-6CRT-85	85 cm	70 cm	240 kg/batch
DL-6CRT-90	90 cm	100 cm	300 kg/batch

Tea rolling machine application:

Tea rolling machine can use for most of tea such as black tea, green tea, and oolong tea.

①	Transverse arm	⑧	Support column
②	Barrel cover	⑨	Rolling disc
③	Stainless steel Drum	⑩	Handwheel
④	Crank	⑪	Support frame
⑤	Transmission case	⑫	Tea discharge handle
⑥	Transmission belt	⑬	Tea outlet
⑦	Drive motor	⑭	Support leg

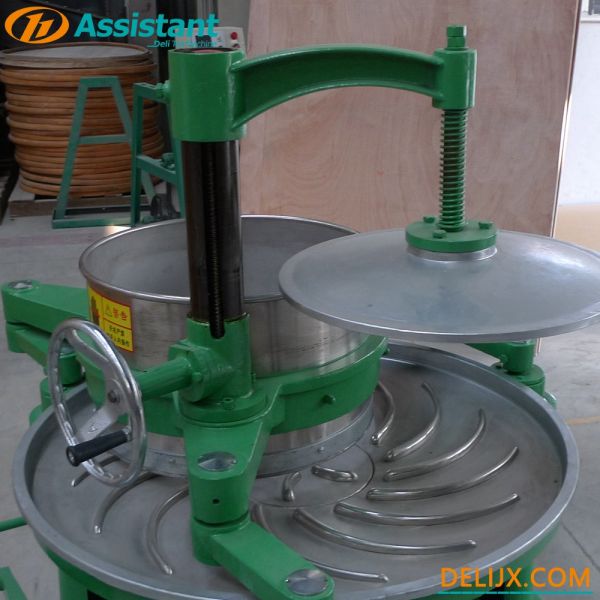

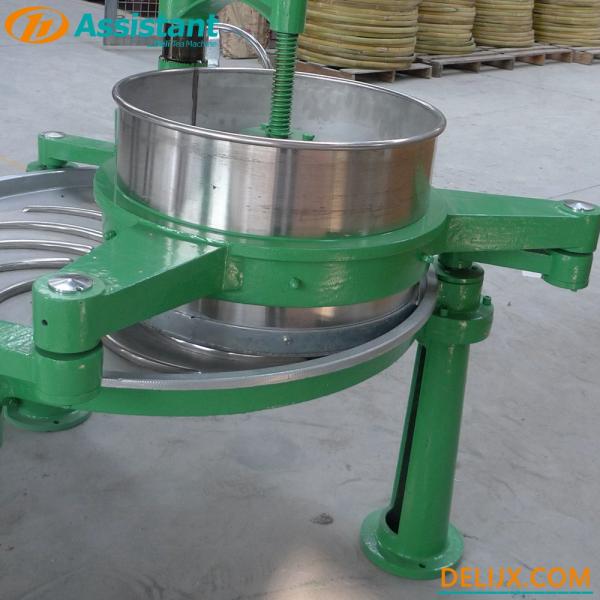

Rolling barrel and rolling plate

Tea rolling barrel made of stainless steel, rolling plate and rolling strip made of aluminum, It will not rust and produce no harmful substances to human body.
Professional design of kneading plate tilt angle and kneading strip radian, the speed of forming tea is 30% faster.
The side is higher than plate, prevent tea leaves ralling from the tea rolling machine.
Can custom all stainless steel or full copper type, if you need these type tea rolling machine, please tell us.

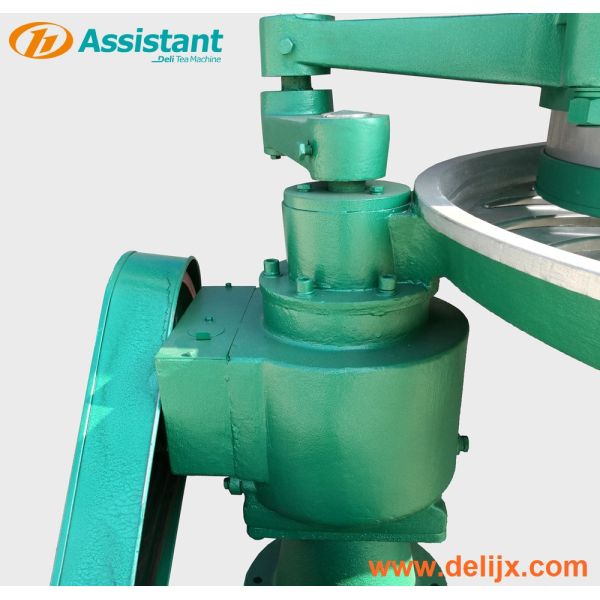

Gear box

Stable gearbox, crank and support frame , ensure smooth and safe operation of tea kneading machines

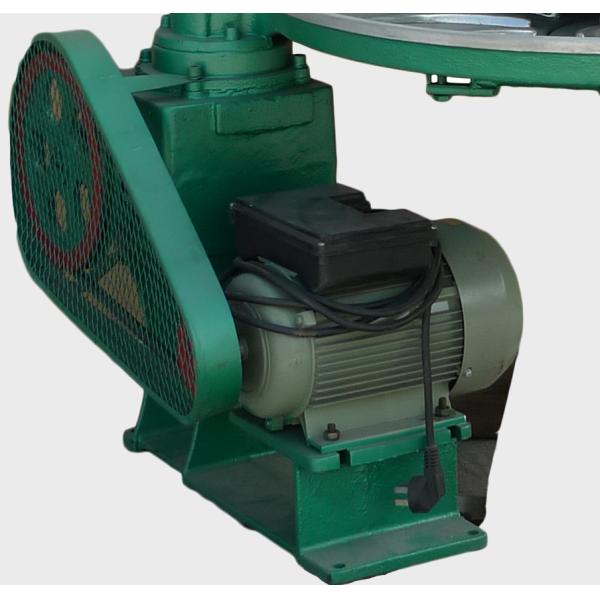

Copper core motor

Powerful copper core drive motor, provide a steady source of power for tea kneading machines.

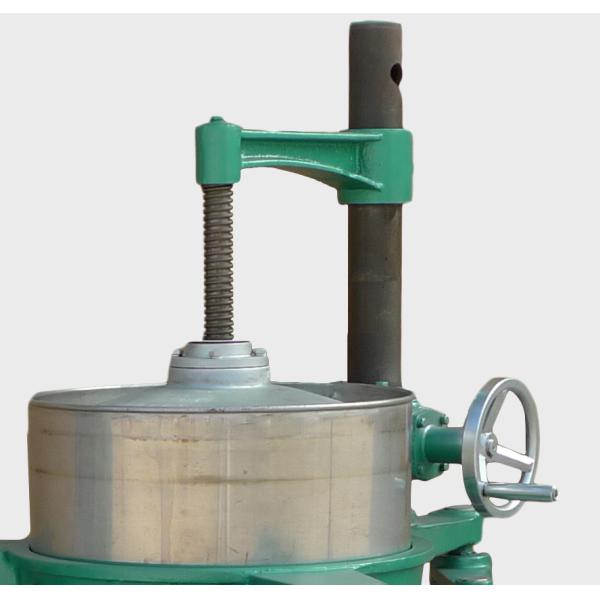

Handwheel and barrel lid

Convenient handwheel, the barrel lid is pressurized by springs, and can be rotated, quality of tea more higher.

Rolling plate and tea leaf outlet

Professional design of kneading plate tilt angle and kneading strip radian, the speed of forming tea and pour out tea leaf is 30% faster.

Tea rolling machine inventory

We have 30 stocks for each model of tea rolling machines, delivery is fast, no need to wait.

If you are interested in tea rooling machine, click here to send us enquiries.

Obtain ISO9001 quality system certification

More than 30 Chinese honorary certificates
More than 20 Chinese national patent certificates
More than 50 promotion certificates of China Agriculture Ministry

Customers visit our factories

Part of the our workshop photos
