Vertical Tea Bag Envelope Packing Machine with Pouch Packaging and 0.2g Weight Error

Name: Vertical Tea Bag Envelope Packing Machine with Pouch Packaging and 02g Weight Error
Brand: DELI ASSISTANT
Price: 8 USD

Quality Vertical Tea Bag Envelope Packing Machine with Pouch Packaging and 0.2g Weight Error for sale

Production Capacity : 40bag/min, 50bag/min, 30bag/min

Weight (KG) : 430

Function : FILLING, Sealing

Application : Food, Commodity, Chemical, Machinery & Hardware, Tea coffee

Packaging Type : Bags, Pouch

Packaging Material : Plastic, Paper

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220v

Place of Origin : Fujian, China

Brand Name : DELI ASSISTANT

Dimension(L*W*H) : 1750*740*1950

Warranty : 1 Year

Key Selling Points : High-accuracy

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Core Components : Motor, Engine

Model : DL-LSDP-XBW

Power : 1.6 kw

Bag Length : 40-100 mm

Bag Width : 45-75 mm

Packing Speed : 40-60 bag/minutes

Weight Error : 0.2g

Marketing Type : automatic dip tea bag machine

Condition : New

Price : $8,500.00/sets 1-9 sets

Contact Now

Vertical Tea Bag Envelope Packing Machine with Pouch Packaging and 0.2g Weight Error

Round Tea Bag Packing Machine

Pyramid Tea Bag Packing Machine

Square Tea Bag Packing Machine

Auto Filling And Sealing Machine

Manual Continuous Bag Sealing Machine

Manual Filling Machine

these machine is Some tea packaging machines, If you want to know more information about these machines, or there is no machine you need here.please contact us

Please note: the price on this page is the exact price, including the freight to your nearest port (CIF by sea). You can place an order directly if necessary.
If you need more than one machine, we can give you a discount. Please contact the supplier directly for the specific discount.

OVERVIEW

Provide variety of packaging bag solutions

The dip bag packaging machine can pack a variety of materials, such as tea, coffee, herbal tea, etc. It can be switched between bags with / without labels, tags and outer bags. It is a powerful assistant for high-end tea, coffee and other food packaging.
according to the different needs of different customers, we can provide packaging of different materials, whether it is granule,powder, liquid packaging, or packaging by weight or quantity, we can provide a complete set of solutions.

DESCRIPTION

Full automatic price tea packing machine/Filter tea bag packing machine/Small sachets tea bag packing machine, used for make dip tea bags, filter paper tea bag 1-8g with tagged filter paper tea bag.
Multi-purpose weighing filling machine with sealer is made of stainless steel with stable performance,lower consumption,high efficiency, safety and cleanness,it's an ideal equipment which can be used for packing food,tea,herb,dry
powder,granules,seeds,grain,wheat,beans,small hardware and components etc.

ADVANTAGE

1. The dip tea bag packing machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials such as: tea, herbal tea, health tea grass-root type and so on.
2. Inner and outer bag's film drawing is controlled by the stepper motor, stable bag length and accurate positioning.
3. The temperature controller is adjusted by PID to make the temperature control more accurate.
4. Overall machine movement is controlled by PLC, with human-machine interface display, ensure health of products.
5.Packing material:filter paper, thread, composite membrane and labels.

SPECIFICATION

Dip tea bag packing machine specification list:

Model	DL-6CYD-10W
Voltage	220V / 50HZ
Dimension	17507401950mm
Power	1.6 kw
Inner Bag Length	40-100 mm
Inner Bag Width	45-75 mm
Outer Bag Length	80-120 mm
Outer Bag Width	75-95 mm
Packing Speed	30-40 bag/minutes
Weight Error	± 0.2g
Air pressure	≥ 0.4 m³/minute
Machine weight	430 kgs

If you have special need, it can be customized according to the needs of customers.

DIAGRAM

1	Materials Hopper	9	Observation window
2	Inner Paper Roll	10	Filling Disc
3	Inner Bag Former	11	Filling Disc Adjuster
4	Inner Bag Sealer	12	Label Tag Roll
5	Inner Bag Clip	13	PLC Screen
6	Outer Bag Roll	14	Button Control Area
7	Outer Bag Sealer	15	Cotton Thread Roll
8	Finished Bag Conveyor	16	Support Wheels

This manual pouch sachet filling machine can pack a variety of materials to meet your needs of different packaging.

Details

One machine with multiple functions

This machine has multiple functions and can pack 6 different types of tea bags. If you want to know more, please feel free to contact us.

Simple operation

The volume of the feeder can be adjusted freely, so that the amount of tea in the tea bag can be adjusted quickly.

With label and outer bags

This machine can pack several types of bags, the basic type only includes the inner bag. In addition, it can be equipped with belt line, label, outer bag and other functions. A variety of machines can meet your various needs.

PHOTOS

The above is the product details. If you want to know more, you can inquire us

Obtain ISO9001 quality system certification

More than 30 Chinese honorary certificates
More than 20 Chinese national patent certificates
More than 50 promotion certificates of China Agriculture Ministry

Customers visit our factories

Part of the our workshop photos

get more information please contact

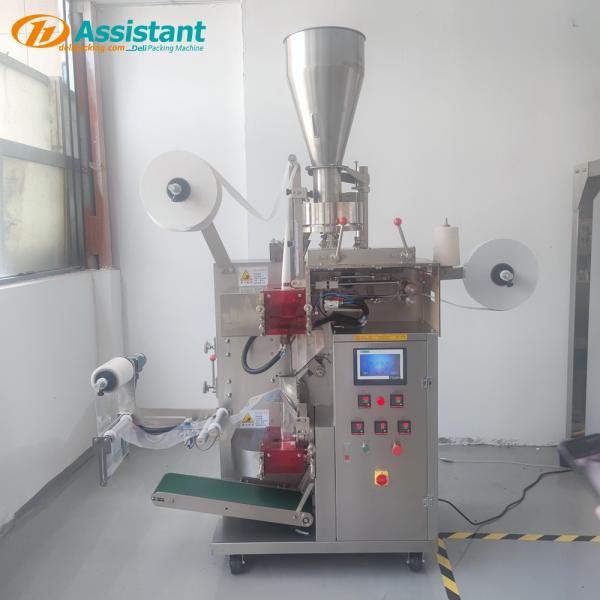

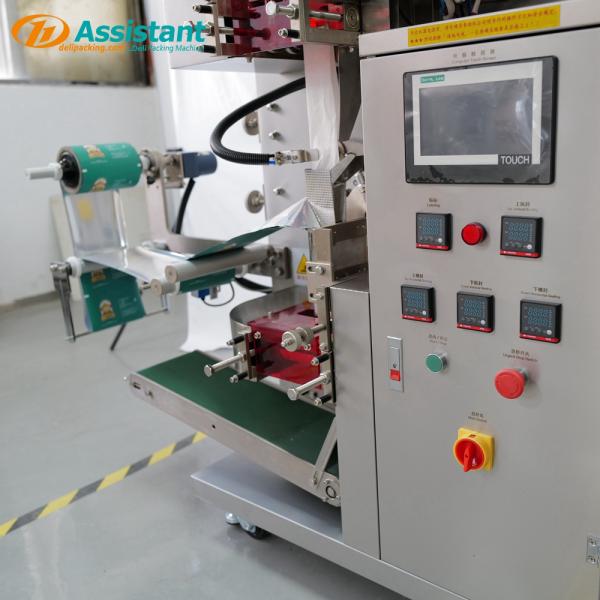

Vertical Tea Bag Envelope Packing Machine with Pouch Packaging and 0.2g Weight Error Images
